Thermal stable poly-crystalline diamond
Thermal stable poly-crystalline diamond
TSP

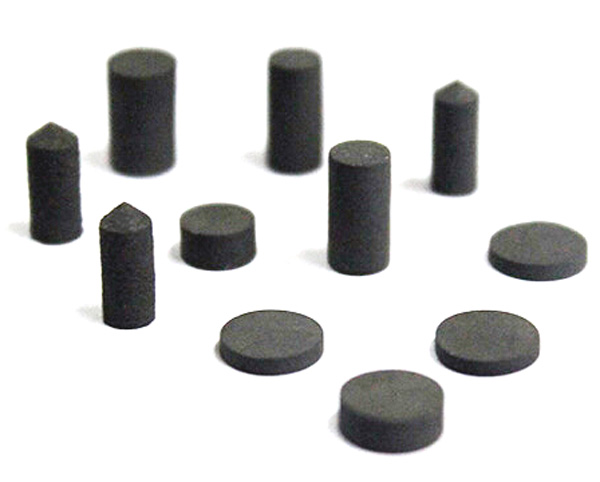

Thermal stable poly-crystalline diamond (TSP) is an non-tungsten carbide-backed poly poly-crystalline diamond product, which is manufactured by the same ultra-high pressure and high temperature techniques as other PCD products. It is thermally stable up to 1200 degree. It is typically suitable for mining bits and oil drilling bits.
Features:
High thermal stability, high wear resistance and impact resistant capability, dense homogeneous structure, etc.
Available shape: Cubes, Cylinders, Cones, Discs, Rectangles, Triangles, Hexagon, hemispheres, oval, special-shaped, as well as Ni/Ti Plated TSP, etc.
Applications: As gauge protector and drilling cutters inserting for rock cutter machines and mining core drill bits for geological, quarrying,construction and machinery. Typical TSP for drilling soft rocks with hardness 3-6 degrees, such as lime rock, marble, shale, etc, TSP with coarse grains formations for medium to hard rock .Also can be used in anywhere that high abrasion resistance and toughness.
Available size and shape:
|
Thermal stable diamond(TSP) cutter for drilling bit |
||||
|
Cylinder/button shape Diameter x Height x Angle (mm) |
||||
|
Φ1x1.2x120° |
Φ1.2x3.5x120° |
Φ1.5x4x180° |
Φ2x4x120° |
Φ2x4x180° |
|
Φ3x3x180° |
Φ3x5x120° |
Φ3x6x180° |
Φ4x4x180° |
Φ4x6x120° |
|
Φ4x10x180° |
Φ5x5x120° |
Φ5x10x180° |
Φ6x6x120° |
Φ6x12x180° |
|
Φ8x3x180° |
Φ8x5x180° |
Φ10x2.2x180° |
Φ13x3x180° |
Φ15x5x180° |
|
Rectangle/cube shape Length x Width x Height (mm) |
||||
|
1.5x1.5x1.5 |
1.5x1.5x4 |
1.5x1.5x5 |
1.5x1.5x10 |
2.5x2.5x2.5 |
|
3x3x3 |
3x3x10 |
3x5x10 |
3x6x10 |
4x4x4 |
|
4x4x8 |
4x6x10 |
5x5x5 |
5x5x10 |
10x10x10 |
|
Triangle shape Length1 x Length2 x Length3 x Height (mm) |
||||
|
4x4x4x2.6 |
5x5x5x3 |
6x6x6x3.5 |
6x6x6x4 |
6x6x6x4.5 |
|
Special shape(oval shape) Length x Width x Height x Radius (mm) |
||||
|
3x3x10xR1.5 |
5x5x10xR3 |
10×10×3×R1.5 |
5x10x20xR7 |
|
|
◆ Other specifications available upon request. |
||||
